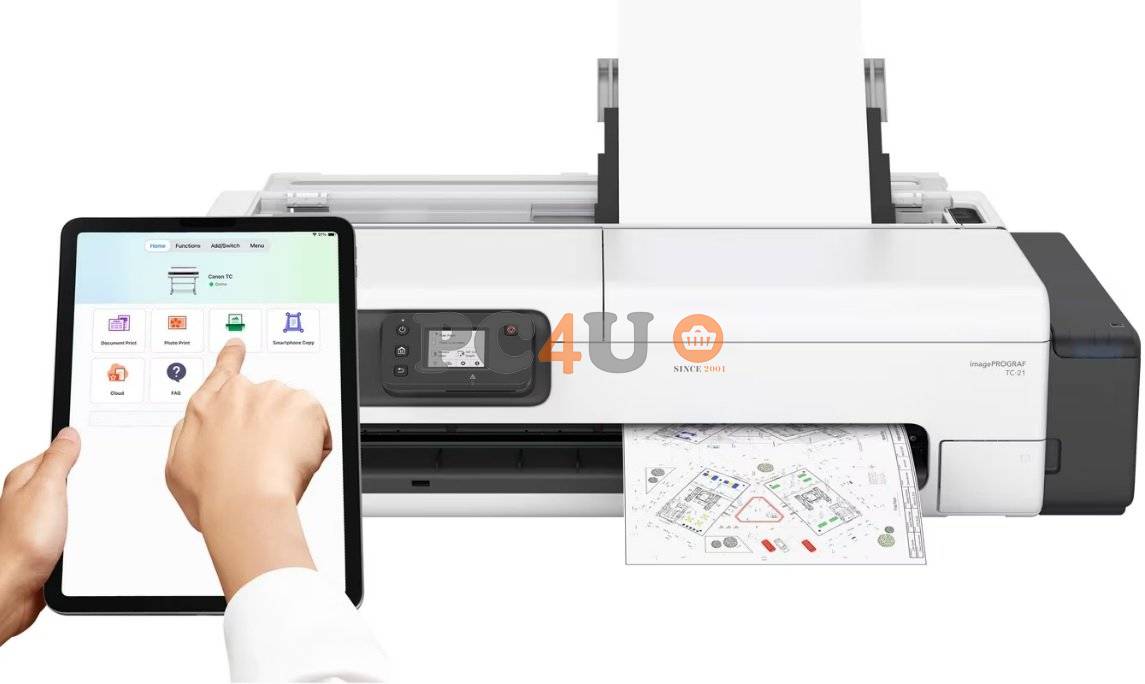

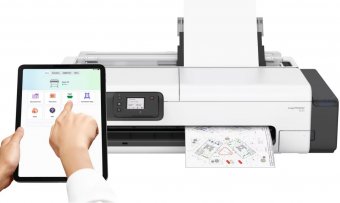

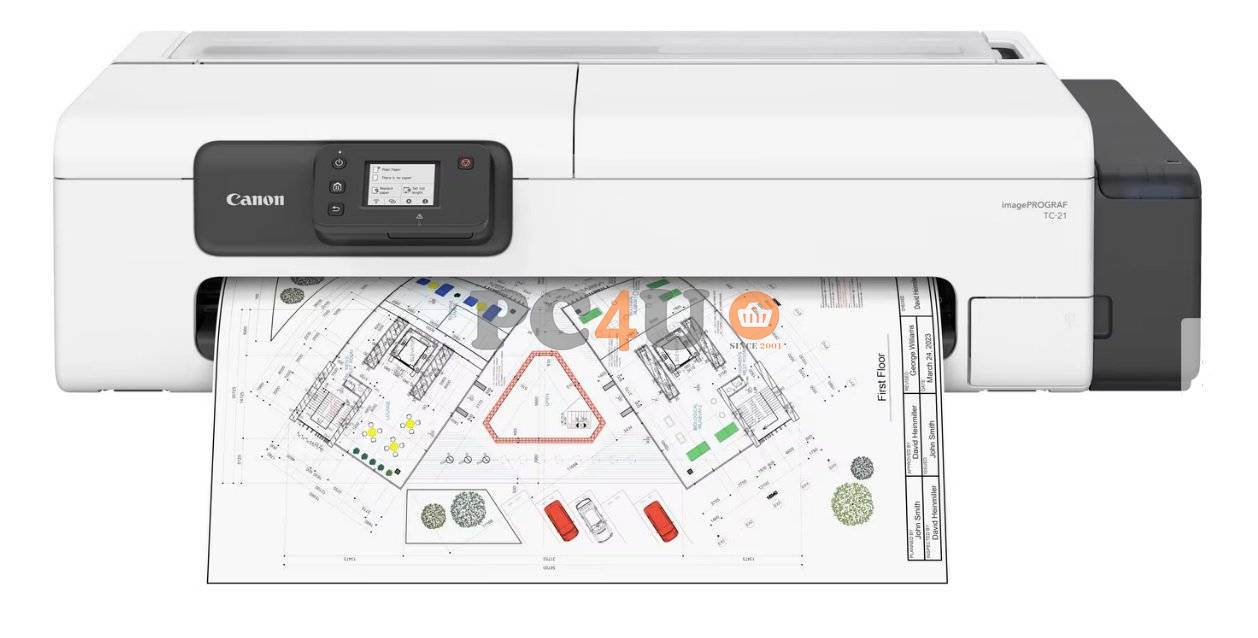

Canon imagePROGRAF TC-21, Plotter Color, 24 inch, A1, Wireless, Retea |
|||
|
Imprimanta Plotter 24 imagePROGRAF TC21. Printer Type 4
Colour 24 inch Print Technology Pigment ink 4 colours integrated type
(4 chips per print head x 1 print head) Print Resolution 2,400 x 1,200
dpi Number of Nozzles Total : 4352 nozzles BK : 1280 nozzles C, M, Y :
1024 nozzles each Line Accuracy ±0.1% or less User adjustments
necessary. Printing environment and media must match those used for the
adjustments. Nozzle Pitch 1,200 dpi x 2 lines Ink Capacity Bundled
Starter Ink: 280ml (70mlx4 for BK, C, M, Y) Sales Ink: 70ml (BK, C, M,
Y) Ink Type Pigment inks : 4 colour BK/C/M/Y OS Compatibility 32 Bit:
Windows7, Windows 8.1, Windows 10 64 Bit: Windows 7, Windows 8.1,
Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019,
2022, 2025 Apple Macintosh: macOS 11.7.10~macOS 14.15 Other Supported
Job Submission Protocols Apple AirPrint, Mopria, Chrome OS Printer
Languages N/A (no direct print supported) Standard Interfaces USB A
Port: N/A USB B Port: Hi-Speed USB Ethernet: IEEE802.3u(100BASE-TX) /
IEEE802.3(10BASE-T) Wireless LAN*:
IEEE802.11n/IEEE802.11g/IEEE802.11b/IEEE802.11a/ IEEE802.11ac (*Please
refer to user manual how to activate/deactivate the wireless LAN) Memory
Standard Memory 1GB Expansion slot : No Hard Drive N/A Print Speed CAD
Drawing Plain paper (A1, B&W): 0:30 (Standard) Plain Paper (A1,
Colour): 1:00 (Standard) Poster Plain Paper (A1) 1:01 (Draft) 1:51
(Standard) Coated Paper (A1) 2:42 (Draft) 4:23 (Standard) Media Handling
Media Feed and Output Roll Paper : One Roll, Front-loading, Front
Output Cut Sheet : Auto sheet feeder, Face-up, Front side Media Width
Roll paper : A3, A2, A2+, A1, B2, B3, 18 inch, 24 inch, 17 inch Cut
sheet: A3, A4, A5, A6, B4, B5, B6, C4, Ledger, Letter, Legal, Foolscap,
Executive, ARCH A, Photo (10 inchx12 inch, 10 inchx15 inch, 8 inchX10
inch, 7 inchX10 inch, 5 inchx7 inch, 4 inchx6 inch(KG), 2L, L), Envelope
(Com 10, DL, C5, Monarch), B-Oficio, M-Oficio, user-defined size
(width: 89 mm - 297mm, length: 127mm - 1200mm) Media Thickness Roll/Cut :
0.08mm - 0.28mm Minimum Printable Length Roll paper: 203.2mm Cut sheet:
127mm Maximum Printable Length Roll paper : 4m Cut sheet : 1200mm
Maximum Media Roll Diameter 110mm Media Core Size Internal diameter of
roll core: 2 inch Margins Recommended Area Roll paper: Top: 5mm, Bottom:
5mm, Side: 5mm (some photo mode: Top: 30mm, Bottom: 30mm) Cut sheet:
Top: 5mm, Bottom: 5mm, Side: 5mm Margins Printable Area Roll paper: Top:
5mm, Bottom: 5mm, Side: 5mm (some photo mode: Top: 30mm, Bottom: 30mm)
Roll paper (minimal margin print): Top: 0mm, Bottom: 0mm, Side: Approx.
0.5mm Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm Media Feed Capacity
Roll Paper: One roll Cut Sheet: A4, Letter: 100 sheets (plain paper) A3,
B4, Ledger, Legal, 10 inch x 12 inch, 10 inch x 15 inch: 50 sheets
(plain paper) FS, Foolscap, ARCH A, C4, B-OFICIO, M-OFICIO: 10 sheets
(plain paper) Others: 1 sheet Media Take-Up Roll Unit N/A Borderless
Printing Width (Roll Only) A4, A3, A2, A1, B4, B3, B2, 17 inch, 18 inch,
24 inch Top/Bottom: Fully borderless; Left/Right: Approx. 0.5mm margin
Maximum Number of Delivered Prints Stand Basket (SD-24) / Desktop Basket
(BU-06): Standard position - 1 sheet Optional Items Desktop Basket:
BU-06 Printer Stand and Basket: SD-24 Consumables User Replaceable Items
Ink Tank: PFl-050 (70ml) Print Head: PF-08 Maintenance Cartridge: MC-32
Timbru verde in valoare de 100 lei (se adauga la confirmarea comenzii)
|
|||
